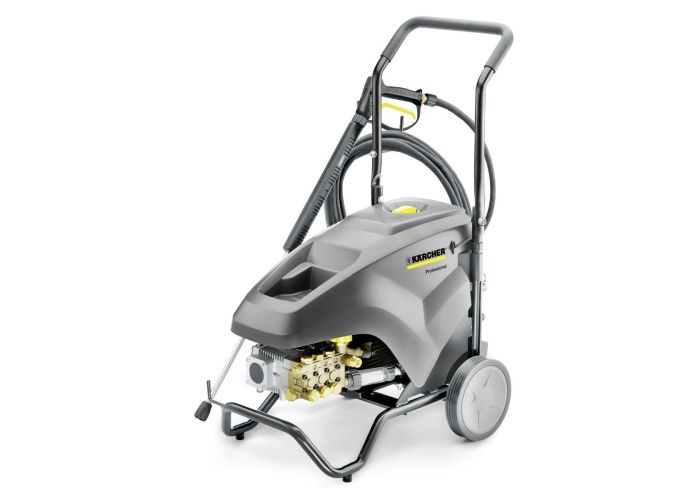

Professional High Pressure Washer HD 9/20-4 Classic
The HD 9/20-4 Classic high-pressure cleaner is the most high-performance model in the HD Classic range. The machine operates with three-phase current, features an impressive 900 l/h water flow, and is synonymous with high durability. All components are designed for continuous use. The intuitive operation, compact dimensions and low weight guarantee comfortable handling. The high-pressure cleaner offers ample on-board storage for the nozzle, lance and other accessories. The HD 9/20-4 Classic is also impressive in terms of efficiency: reduced cleaning times ensure a plus for profit. Service-friendliness is an additional bonus. The machine features easy access to all relevant machines parts.
Feature and Benefits
" alt="" /> Durable and robust
Extra large crankshafts and connecting rods with robust ball bearings. Ceramic pistons for reduced wear and tear. High performance sealing packages for longer working times.
" alt="" /> Especially easy to maintain
Wide-opening machine cover for easy access to all service and maintenance-relevant components. Large water fine filter for protecting the pump. Integrated nozzle storage.
" alt="" /> Improved cleaning performance
Patented Karcher power flat jet nozzles: up to 40 percent more impact force than conventional nozzles. High area coverage and thorough dirt removal.
Specifications
Technical data
| Supply voltage (Ph/V/Hz) | 3 / 400 / 50 |
| Flow rate (l/h) | 520 - 900 |
| Inlet temperature (°C) | 60 |
| Working pressure (bar/MPa) | 70 - 200 / 7 - 20 |
| Max. pressure (bar) | 240 |
| Connection load (kW) | 6.9 |
| Weight (with accessories) (kg) | 56 |
| Dimensions (L x W x H) (mm) | 709 x 469 x 1000 |
Equipment
- Spray gun, Standard
- High-pressure hose, 10 m, ID 8, 315 bar
- Stainless steel spray lance, 600 mm
- Power nozzle
- Anti-twist system
- Pressure switch-off
- Crankshaft pump with ceramic pistons
